Source Four Mini Projector

Physical Specifications

• Rugged die cast aluminum construction
• 20 gauge stainless steel shutters in a bi-plane assembly
• High impact, thermally insulated knobs and shutter handles
• Two accessory slots, and a top mounted, gel frame retainer
• Steel yoke with two mounting positions
• Positive locking, hand-operated yoke clutch

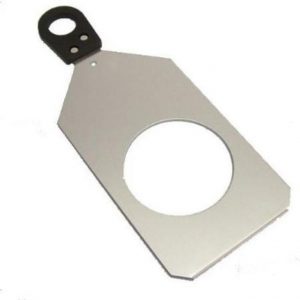

• Slot for glass or stainless steel patterns
• Slot with sliding cover for motorized pattern devices or optional iris
• UL and cUL Listed

Electrical Specifications

• 115-240V, 50/60Hz
• High temperature 3-conductor 36” leads in a glass fiber outer sleeve
• Supports ETC Dimmer Doubling™ technology LAMP
• 575 watt maximum
• HPL – compact tungsten filament contained in a krypton-filled quartz envelope
• Patented filament geometry provides extremely efficient light collection and transmission
• Integral die cast aluminum heat sink lamp base

Optical Specifications

• Optimized optical system for efficient photo-metric performance
• Two bi-convex lenses
• Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
• Reflector secured with anti-vibration shock mounts
• Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping
• Beam edge continually adjustable hard-to-soft
